ALU architecture

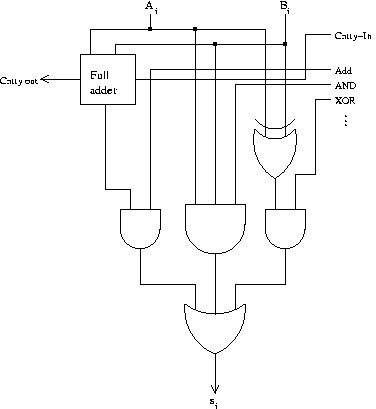

First of all, here is a one-bit "bit-slice":

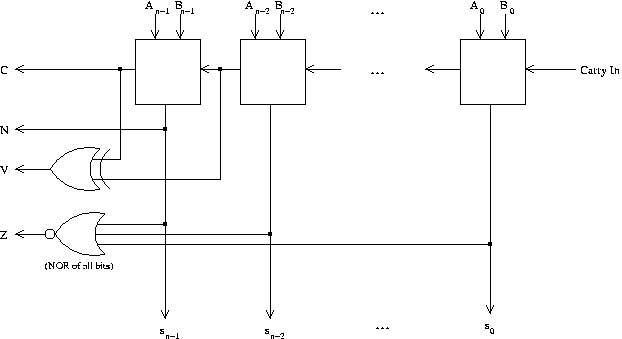

We can use n of these ALU bit-slices to make an n-bit ALU:

This diagram is simplified in one particular way: it omits the wiring of the "function" control lines into every little one-bit ALU bit-slice. The upper diagram shows how these lines will go into each one-bit bit-slice.

The condition code values coming out on the left-hand side will be latched in a condition code register. For information about this and other issues in the connection of the ALU to the rest of the CPU, see the "ALU interface" section, next.
