Synchronous counter

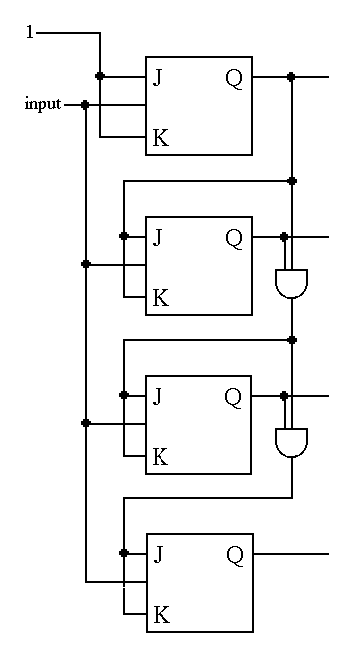

The input to each JK flip-flop will be an AND of the Qs of all of the lower-order flip-flops. The pulse input (clock input) goes to all flip-flops.

All of the flip-flops flip simultaneously (if they should be flipping at all this cycle), because they're all clocked by the same clock. The cumulative AND function computed on the right is a predictor function, which determines in advance whether or not the given bit should flip in the next cycle.

What about the "reset" function?
See my synchronous counter with reset, next.
