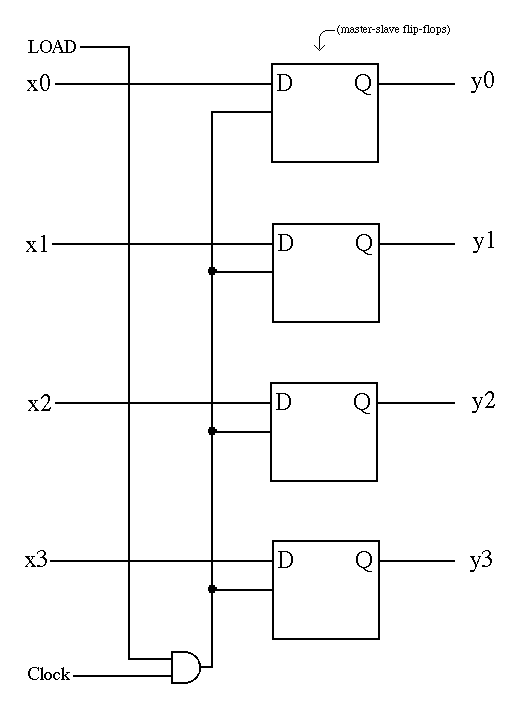

Simple register

The above mechanism could be called a "parallel load". Every flip-flop gets loaded at the same time.

A shift register (next) supports a "serial load".
