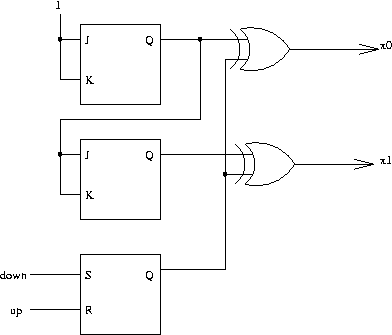

The clock is not shown above; it should be wired into the clock input of each flip-flop. Or, actually, the SR box can be an unclocked latch. But the two JK flip-flops need to be full master-slave flip-flops.
